特斯拉的自动化能力很强，不用来造机器人就太浪费了。

Tesla's automation ability is very strong. It's too wasteful not to build robots.

「非常抱歉，我们遭遇了一点技术问题，希望以后这可以用 AI 来解决。」今天的活动延迟了半个多小时，伊隆 · 马斯克这样做了开场白。

"I'm very sorry. We have encountered some technical problems. I hope this can be solved by AI in the future." Today's event was delayed for more than half an hour. Elon Musk made his opening remarks.

北京时间 8 月 20 日上午，万众瞩目的「特斯拉 AI 日」开始了。在活动上，伊隆 · 马斯克向全世界展示了特斯拉在自研超级计算机 Dojo、FSD 软件等内容上的最新进展。

On the morning of August 20, Beijing time, the high-profile "Tesla AI day" began. At the event, Elon Musk showed the world Tesla's latest progress in self-developed supercomputer Dojo and FSD software.

按照马斯克本人的说法，吸引最好的 AI 人才加入特斯拉似乎是本次活动的唯一目标。

According to musk himself, attracting the best AI talents to Tesla seems to be the only goal of this activity.

当然，这次发布向世人宣告的远不止于此，有关通用机器人的计划让我们始料未及。

Of course, this release announced to the world far more than that. The plan for general robots was unexpected.

纯视觉自动驾驶系统和 HydraNets

Pure vision automatic driving system and HydraNets

首先，特斯拉最被人们关注的是自动驾驶技术。

First of all, Tesla is most concerned about automatic driving technology.

特斯拉一直标榜自己的电动车具备高度自动化的辅助驾驶能力，7 月 10 日，FSD（Fully Self Driving，全自动辅助驾驶系统）软件迎来更新。不过当时，更新仅限于特斯拉抢先体验计划用户，这些用户可以进行 FSD Beta V9 版本测试，其最大亮点是基于摄像头和 AI 智能算法的纯视觉自动辅助驾驶技术路线，而不依赖于雷达传感器。

Tesla has always boasted that its electric vehicles have highly automated assisted driving capability. On July 10, FSD (fully self driving) software was updated. However, at that time, the update was limited to Tesla preemptive experience program users, who could test the FSD beta V9 version. The biggest highlight was the pure visual automatic driving assistance technology route based on camera and AI intelligent algorithm, rather than relying on radar sensors.

7 月 31 日，特斯拉正式推送 FSD 的最新版本 FSD Beta V9.1，这是首个使用「特斯拉视觉」的先进司机辅助驾驶套件。8 月 16 日，特斯拉又推送了 FSD Beta V9.2 版本。

On July 31, Tesla officially launched the latest version of FSD beta v9.1, which is the first advanced driver assistance driving kit using "Tesla vision". On August 16, Tesla pushed FSD beta V9.2.

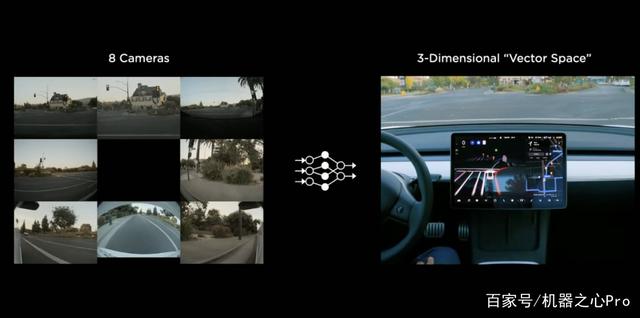

特斯拉 AI 总监 Andrej Karpathy 博士介绍了这种基于视觉的自动驾驶系统：它通过八个摄像头的数据输入（1280×960 12-Bit HDR 36Hz）进单个神经网络中，整合成 3D 环境的感知，这被称为 Vector Space。

Dr. Andrej Karpathy, AI director of Tesla, introduced this vision based autopilot system: it entered data through eight cameras (1280 × 960 12 bit HDR (36Hz) is integrated into a single neural network and integrated into the perception of 3D environment, which is called vector space.

「AI 可以被视为生物，它是从头开始构建的，包括其合成视觉皮层。」

"AI can be regarded as a creature. It is built from scratch, including its synthetic visual cortex."

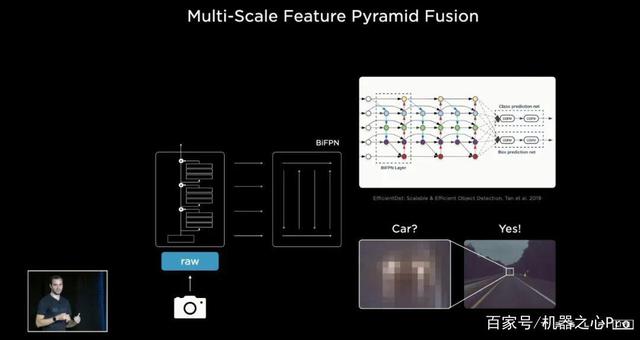

当特斯拉在汽车中设计视觉皮层时，他们从头设计了神经网络，按照生物视觉方法去建模，并利用多头路线，其中包括相机校准、缓存、队列和优化以简化所有任务。

When Tesla designed the visual cortex in the car, they designed the neural network from scratch, modeled it according to the biological vision method, and used multi head routes, including camera calibration, cache, queue and optimization, to simplify all tasks.

特斯拉从主干网络中获取数据，并将有用的信息输入到不同的任务中（比如目标检测、交通信号灯和车道预测），同时抛弃其他内容，避免浪费算力。

Tesla obtains data from the backbone network and inputs useful information into different tasks (such as target detection, traffic lights and lane prediction), while discarding other contents to avoid wasting computing power.

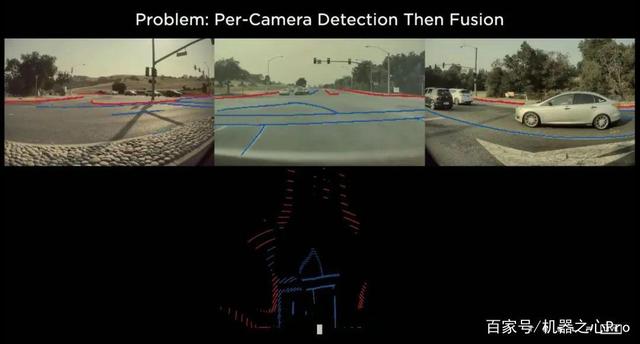

特斯拉的自动驾驶算法是从识别单张图片的普通计算机视觉算法开始的，虽然每个摄像头的单独检测效果很棒，但这显然不够。现在的纯视觉算法「HydraNets」基于不同摄像头的视觉内容进行识别的，而且训练和推断是端到端的。

Tesla's automatic driving algorithm starts with the ordinary computer vision algorithm for recognizing a single picture. Although the individual detection effect of each camera is great, it is obviously not enough. The current pure vision algorithm "hydranets" recognizes based on the visual content of different cameras, and the training and inference are end-to-end.

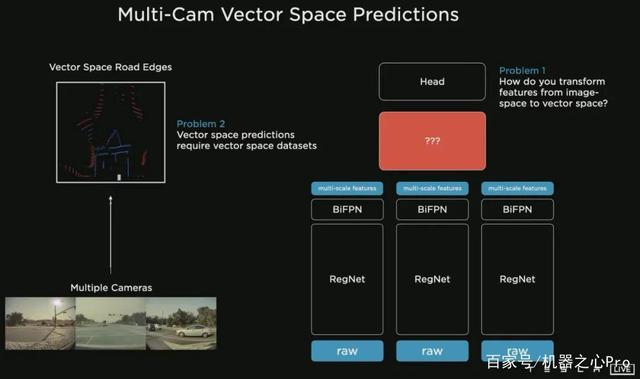

该算法将多个摄像头的视觉内容转变为向量空间和道路特征。

The algorithm transforms the visual content of multiple cameras into vector space and road features.

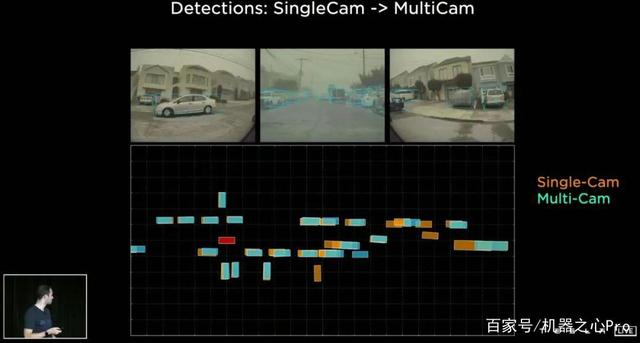

多摄像头网络的效果值得肯定，尽管只是数量上的增加，但却可能成为解决预测问题的关键之处。该网络生成的周围景观预测很大程度上提高了自动驾驶系统的稳健性。

The effect of multi camera network is positive. Although it is only an increase in the number, it may become the key to solve the prediction problem. The prediction of the surrounding landscape generated by the network greatly improves the robustness of the automatic driving system.

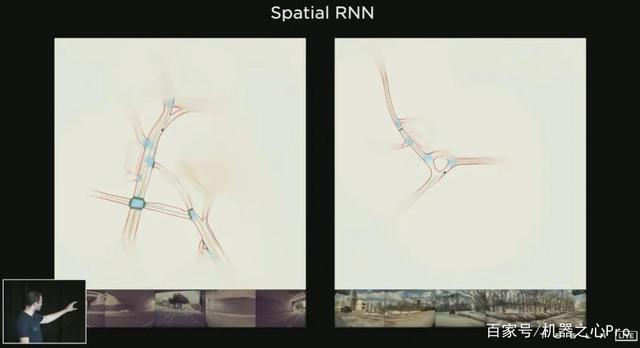

红绿灯左转是对于自动驾驶的巨大挑战，当车辆在道路上行驶并通过交叉路口时，神经网络会通过 Spacial RNN 进行预测。并在虚拟环境中进行多次模拟，以进一步改善路径规划和理解。

Turning left at traffic lights is a great challenge for automatic driving. When the vehicle is driving on the road and passing through the intersection, the neural network will predict through spacial RNN. Several simulations are carried out in the virtual environment to further improve path planning and understanding.

在算法模拟的单元空间中，每一个 unit 都是一个 RNN，并随着车辆的运动更新。

In the cell space simulated by the algorithm, each unit is an RNN and updates with the movement of the vehicle.

Karpathy 指出，特斯拉现在的 FSD 战略是更具凝聚力的。事实证明，特斯拉的车辆可以有效地绘制实时地图。与 Super Cruise 和 Waymo 等汽车及软件领域的竞争对手的预绘制地图策略相比，这是一个巨大的差异。

Karpath pointed out that Tesla's current FSD strategy is more cohesive. Facts have proved that Tesla's vehicles can effectively draw real-time maps. This is a huge difference from the pre mapping strategy of competitors in the automotive and software fields such as super cruise and waymo.

自动驾驶软件总监 Ashok Elluswamy 介绍了混合规划系统，以 Autopilot 如何变道为例，当与其他汽车并排行驶时，Autopilot 不仅要考虑它们的驾驶方式，还必须考虑其他汽车的运行方式。

Ashok elluswamy, director of automatic driving software, introduced the hybrid planning system. Taking how autopilot changes lanes as an example, when driving in parallel with other vehicles, autopilot must consider not only their driving mode, but also the operation mode of other vehicles.

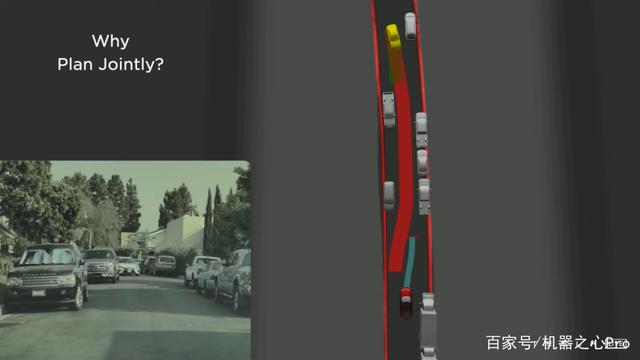

在狭窄的过道周围进行规划时，重要的是要考虑其他驾驶员及其行为，例如在必要时让行：

When planning around narrow aisles, it is important to consider other drivers and their behavior, such as giving way when necessary:

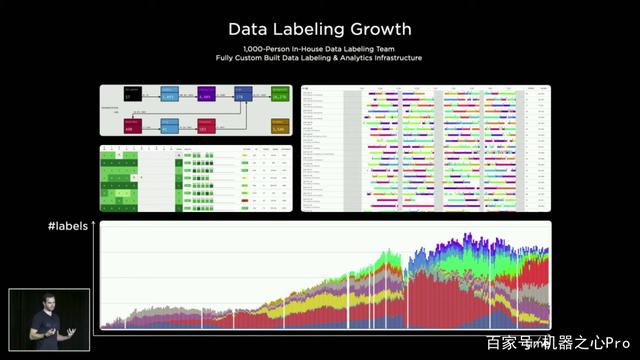

Karpathy 还提到了数据标注问题。他指出，外包给第三方公司的手动标签并不是最佳选择，本着垂直整合的精神，特斯拉选择建立自己的标注团队。

Karpath also mentioned the problem of data annotation. He pointed out that manual labels outsourced to third-party companies are not the best choice. In the spirit of vertical integration, Tesla chose to establish its own labeling team.

一开始，特斯拉使用的是 2D 图像标签。最终，特斯拉转向了 4D 标签，可以在向量空间中进行标注。但是这还不够，自动标注技术得到了发展。

At first, Tesla used 2D image labels. Finally, Tesla turned to 4D labels, which can be labeled in vector space. But this is not enough. Automatic annotation technology has been developed.

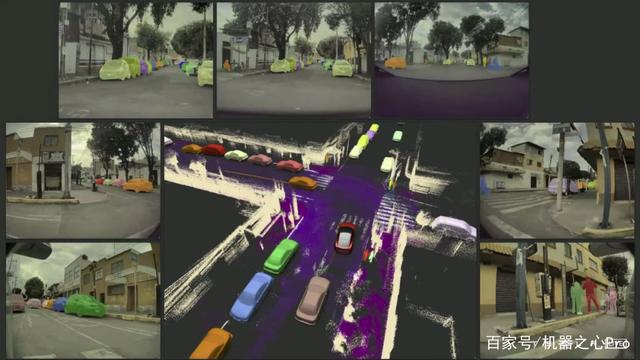

有太多的标签需要完成标注，而让人们手动来完成是不可能的。特斯拉自动驾驶软件负责人 Ashok Elluswamy 展示了道路和道路上的其他物品是如何从一辆正在行驶的汽车中「重建」出来的。这有效地让特斯拉能够更快地标记数据，同时允许车辆即使在存在遮挡的情况下也能安全准确地导航。

There are too many labels to complete labeling, and it is impossible for people to complete it manually. Ashok elluswamy, head of Tesla's automatic driving software, showed how the road and other items on the road were "Reconstructed" from a moving car. This effectively allows Tesla to tag data faster and allows the vehicle to navigate safely and accurately even in the presence of occlusion.

甚至在对比度过高，摄像头采集的图像不够清晰时，特斯拉还使用神经网络对画面进行了增强。

Even when the contrast is too high and the image collected by the camera is not clear enough, Tesla also uses neural network to enhance the image.

Ashok 指出，这些策略最终帮助特斯拉将雷达从 FSD 和 Autopilot 套件中淘汰，并采用了纯视觉模型。雷达 + 摄像头系统与纯视觉之间的比较显示了该公司当前的战略有多精细。同时他也谈到了仿真如何帮助特斯拉开发其自动驾驶系统。尽管特斯拉专注于现实世界的数据，但它也使用仿真。

Ashok pointed out that these strategies eventually helped Tesla eliminate the radar from the FSD and autopilot suite and adopt a pure visual model. The comparison between radar + camera system and pure vision shows how sophisticated the company's current strategy is. He also talked about how the simulation helps Tesla develop its autopilot system. Although Tesla focuses on real-world data, it also uses simulation.

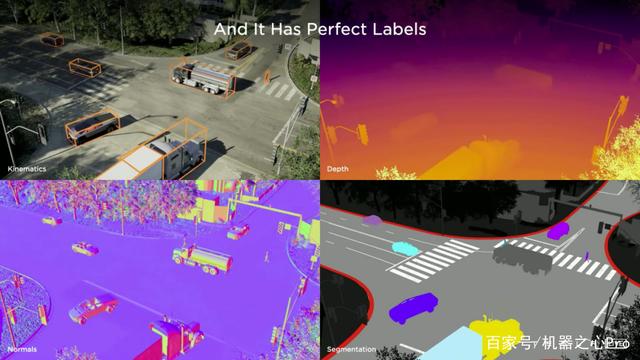

特斯拉利用一个新的仿真程序 (用他们自己的话说，就是 Autopilot 扮演玩家的视频游戏) 来测试边缘情况和其他可能遇到的问题。

Tesla uses a new simulation program (in their own words, a video game in which autopilot plays players) to test edge conditions and other possible problems.

神秘超算 Dojo：革命性架构

Mysterious supercomputing Dojo: Revolutionary architecture

DOJO，这次特斯拉 AI 日的最大看点，最终也没有让人失望。

Dojo, the biggest attraction of Tesla AI day, did not disappoint people in the end.

2020 年 8 月，马斯克表示，该公司正在研发一款名为「Dojo」的神经网络训练超级计算机，将主要处理从特斯拉汽车在路上获得的海量视频数据。马斯克发推称：「Dojo V1.0 还未完成，估计还需要一年的时间。不仅仅是芯片本身的研发难度，能效和冷却问题也非常的难。」

In August 2020, musk said that the company was developing a neural network training supercomputer called "Dojo", which will mainly process the massive video data obtained from Tesla cars on the road. Musk tweeted: "Dojo v1.0 has not been completed, and it is estimated that it will take another year. Not only is the research and development of the chip itself difficult, but energy efficiency and cooling are also very difficult. "

几个月后，马斯克又补充道：「Dojo 采用我们自研的芯片和为神经网络训练优化的计算架构，而非 GPU 集群。尽管可能是不准确的，但是我认为 Dojo 将会是世界上最棒的超算。」

A few months later, musk added, "Dojo uses our self-developed chip and the computing architecture optimized for neural network training, rather than GPU clusters. Although it may be inaccurate, I think Dojo will be the best supercomputing in the world. "

今天，特斯拉终于揭开了 Dojo 计算机芯片的神秘面纱。它采用了创新的架构，将算力分布在复杂的网络构造中，实现了极高的算力、高带宽、低延迟的网络吞吐量。

Today, Tesla finally unveiled the mystery of Dojo computer chip. It adopts an innovative architecture, distributes the computing power in the complex network structure, and realizes the network throughput with high computing power, high bandwidth and low delay.

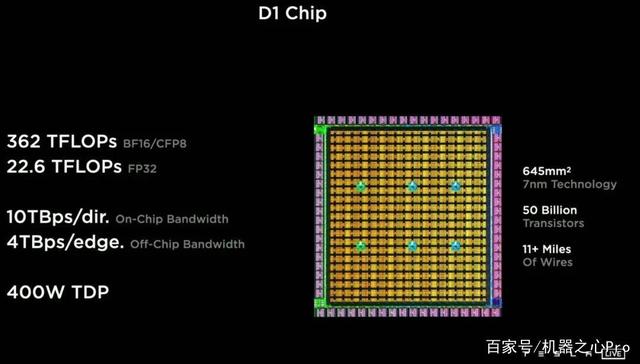

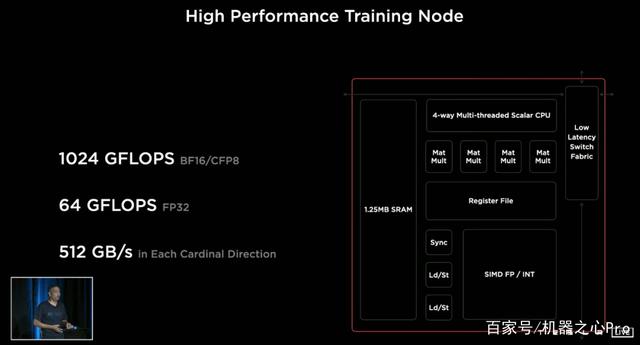

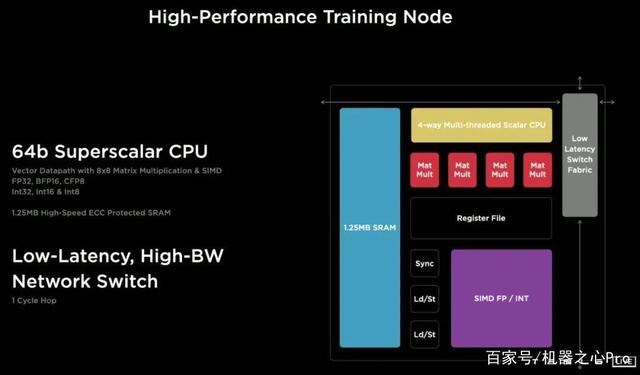

Dojo 的设计是从芯片开始从头做起的。Dojo 的训练 CPU 属于 ASIC 芯片，专注于人工智能训练，采用 7 纳米制程，可以实现 1024GFLOPS 的 BF16 算力，在芯片周围的四向都有 4TB/s 的传输带宽。

Dojo's design starts from the chip and starts from scratch. Dojo's training CPU is an ASIC chip, which focuses on artificial intelligence training. It adopts a 7 nm process, which can realize the bf16 computing power of 1024gflops, and has a 4tb / s transmission bandwidth in four directions around the chip.

特斯拉宣称它的效率超过了现有的 GPU 和 TPU，其主要的优势是在带宽上。

Tesla claims that its efficiency exceeds the existing GPU and TPU, and its main advantage is in bandwidth.

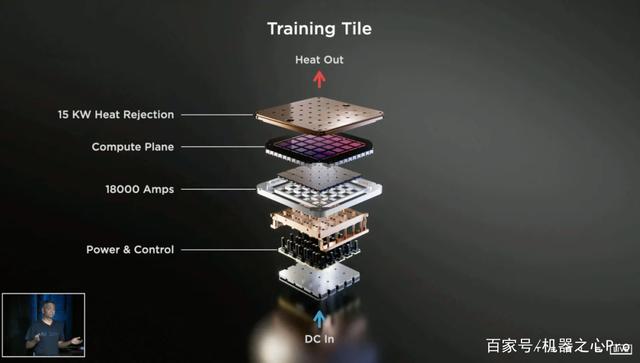

Dojo 用所有力量做一件事：使自动驾驶汽车成为可能。它是一个纯粹的机器学习机器，以现有芯片和服务器的思路看，它的规格堪称「疯狂」：首先把 50 万个训练节点集合在一起，每个区块都有 9 petaflops 的算力，每秒 36 TB 的区块外带宽。

Dojo does everything with all strength: making it possible to drive an automobile automatically. It is a pure machine learning machine. From the perspective of existing chips and servers, its specification can be called "Crazy": first, 500000 training nodes are gathered together, and each block has 9 petaflops of computing power and 36 TB of out of block bandwidth per second.

但这只是 Dojo 的冰山一角。在应用时，120 个这样的 D1 芯片区块被整合为一个 ExaPOD，顾名思义，它有每秒超过 1 亿亿次的运算能力（10 的 18 次方），这是目前世界上最快的 AI 训练计算机。与业内其他产品相比，在同样的成本上，ExaPOD 的性能要高 4 倍，能耗比高 1.3 倍，占用空间缩小了 5 倍。

But this is just the tip of Dojo's iceberg. In application, 120 such D1 chip blocks are integrated into an exapod. As the name suggests, it has more than 100 million computing power per second (10 to the 18th power), which is the fastest AI training computer in the world. Compared with other products in the industry, at the same cost, the performance of exapod is 4 times higher, the energy consumption is 1.3 times higher, and the occupied space is reduced by 5 times.

「我们很快就会组装起第一台这样的服务器，这样的设备可以无限链接。」特斯拉 Dojo 项目负责人 Ganesh Venkataramanan 表示，Dojo 有望成为地球上最强大的超级计算机之一。

"We will soon assemble the first such server. Such devices can be linked indefinitely." Ganesh venkataramanan, head of Tesla Dojo project, said that dojo is expected to become one of the most powerful supercomputers on earth.

这些芯片可以帮助 AI 模型利用特斯拉汽车上的摄像头收集到的视频，进而识别各种内容。「我们应该在明年让 Dojo 投入运营，」马斯克说道。

These chips can help AI models identify various contents by using videos collected by cameras on Tesla cars. " We should put Dojo into operation next year, "Musk said.

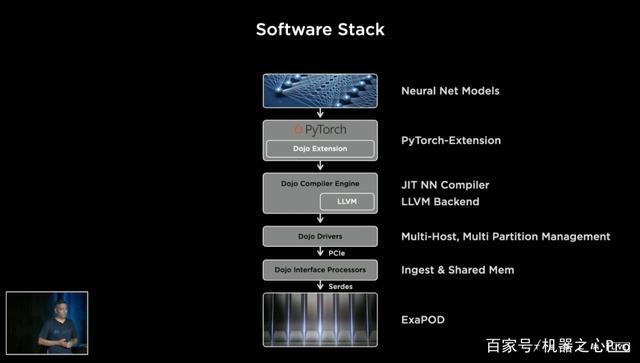

与此同时，特斯拉还围绕这套计算系统构建了完整的软件堆栈，深度学习框架用的是 PyTorch。

At the same time, Tesla also built a complete software stack around this computing system, and the deep learning framework uses pytorch.

此外，特斯拉还计划让下一代 Dojo 性能再提升 10 倍。

In addition, Tesla also plans to improve the performance of the next generation Dojo by another 10 times.

特斯拉人形机器人

Tesla humanoid robot

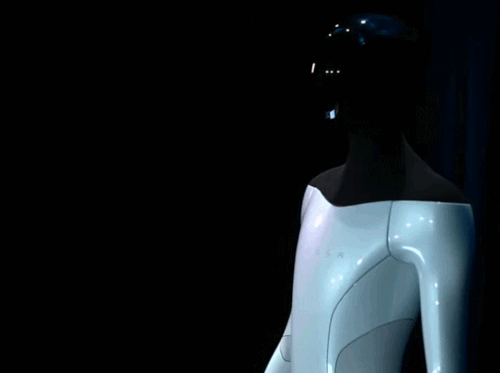

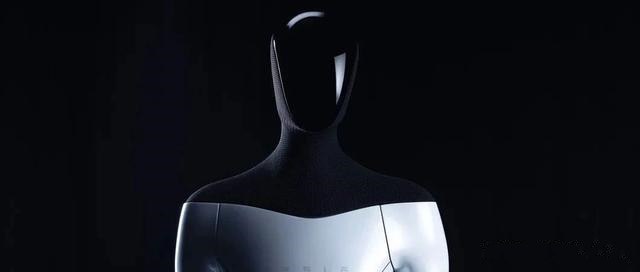

以上都是此前剧透过的信息，但还有 one more thing，特斯拉要造人形机器人。

The above is the information through the previous play, but there is one more thing. Tesla wants to build a humanoid robot.

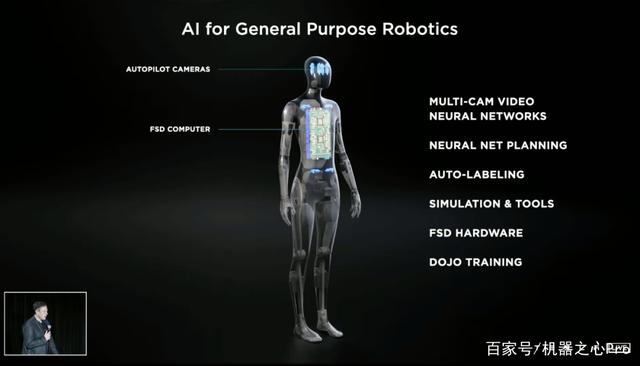

在几张幻灯片中，我们可以了解到 Tesla Bot 的一些信息。首先，这款机器人可以用在特斯拉的自动驾驶汽车上，它能学会使用我们在驾驶汽车时所操作的所有装置。然后，你就可以吩咐它去商店买东西…… 马斯克认为，人形机器人「会对未来经济产生深远影响」。

In a few slides, we can learn some information about Tesla bot. First of all, this robot can be used in Tesla's autopilot car, and it can learn to use all the devices we operate when driving a car. Then you can tell it to go shopping... Musk believes that humanoid robots "will have a far-reaching impact on the future economy".

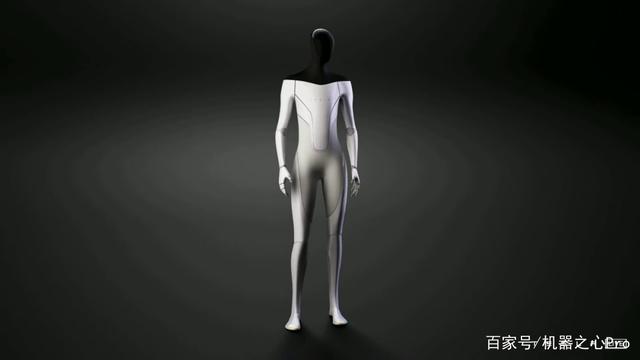

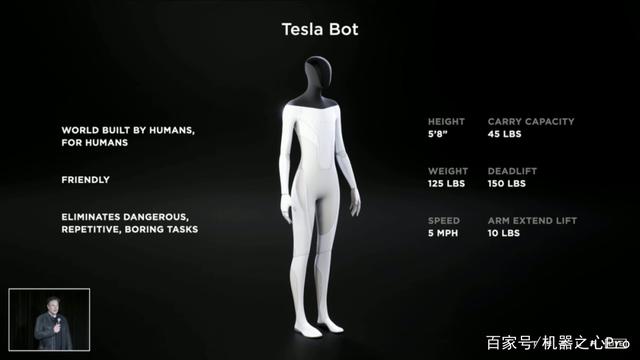

它的身高大概是 1.72 米（5 英尺 8 英寸），重约 125 磅，身材匀称，还带有一张面部屏幕能够以约 5 英里 / 小时的速度移动。

It is about 1.72 meters (5 feet 8 inches) tall, weighs about 125 pounds, is symmetrical, and has a face screen that can move at a speed of about 5 miles per hour.

这款机器人的第一个实体版本或将在明年面世，设计初衷就是用来处理那些「不安全、重复的、无聊的工作」。马斯克说：「我认为在未来，体力工作会是一种选择，你愿意的话也可以，不愿意的话也行。」

The first physical version of the robot may be available next year. It was originally designed to deal with "unsafe, repetitive and boring work". Musk said, "I think manual work will be an option in the future. You can do it if you like or if you don't want to."

这仿佛代表了马斯克的某种设想：「制造类人机器人是特斯拉下一个必然要投入的方向。」毕竟他认真地说过，特斯拉已经是「世界上最大的机器人公司」。

This seems to represent Musk's assumption: "manufacturing humanoid robots is Tesla's next inevitable direction." After all, he seriously said that Tesla is already "the largest robot company in the world".

当然，特斯拉机器人目前还只是一个设想，我们距离全能机器人管家的距离，要比自动驾驶汽车更远。

Of course, Tesla robot is only a tentative idea. We are farther away from the totipotent robot housekeeper than the self driving car.

在最后，QA 环节的第一个问题有点幽默：「特斯拉会拥抱开源吗？」

At the end, the first question in QA is a little humorous: "will Tesla embrace open source?"

马斯克的回答是：「这些东西都是花费了巨资研制的，所以我不太确定要不要开源。」但如果其他汽车公司想要获得 Autopilot 的许可，那是可以做到的。

Musk's answer was, "these things have been developed at a huge cost, so I'm not sure whether to open source." But if other car companies want to get the license of autopilot, that can be done.

但正如 SpaceX 和特斯拉此前所做的一样，马斯克的公司经常能让先进技术变得越来越便宜。不知在未来，人形机器人是否也会很快有一个亲民的价格？

But as SpaceX and Tesla have done before, Musk's company can often make advanced technology cheaper and cheaper. I wonder if humanoid robots will soon have a price close to the people in the future?
